TM 9-2350-277-20-1
FUEL LEVEL INDICATOR MALFUNCTIONS—Continued
0049 00
B2Y
1. Install jumper wire between harness 12268797 circuit 30 or 31
and ground.
2. Does fuel indicator read empty?
YES
NO
GO TO
CY
(PAGE 0049 00-5)
B3Y

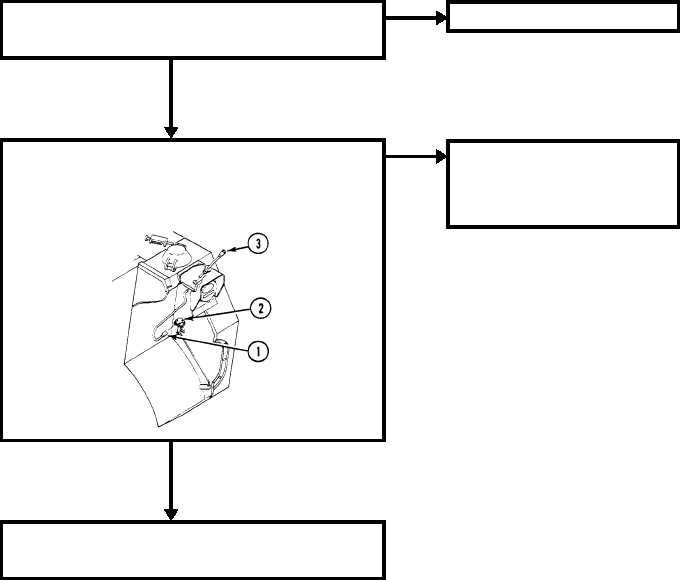

1. Access failing fuel level transmitter (WP 0190 00).
2. Remove lead 12268804 -1 (or -2) plug (1) from failing
transmitter
jack (2).
3. Check
continuity
between plugs (1) and (3).
4. Does
multimeter
read 0 ohms?
YES
NO
B3YN
1. Replace FUEL QUANTITY
transmitter lead, 12268804 -1
(WP 0190 00) or 12268804-2 (for
M577A3/M1068A3) (WP 0191 00).
2. Verify no faults found.
B4Y
1. Replace FUEL QUANTITY transmitter (WP 0190 00) or (for
M577A3/M1068A3) (WP 0191 00).
2. Verify no faults found.
0049 00-4
