ACCELERATOR, THROTTLE AND ENGINE CONTROL GOVERNOR

ACCELERATOR, THROTTLE AND ENGINE CONTROL GOVERNOR - TM-9-2350-267-20_802

THROTTLE CONTROL LEVER AND ACCELERATOR PEDAL

TM-9-2350-267-20 Carrier Ammunition Tracked M992 (2350-01-110-4660) Manual
Page Navigation
738

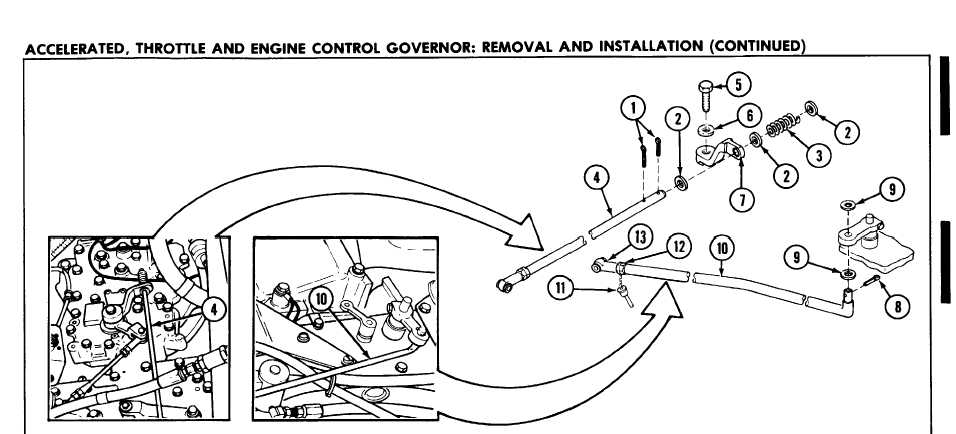

F Install quick-release pin (11), chain and wire to connecting link ADJUSTMENT 10). Refer to pages 7-46 through 7-49 for instructions on adjustment of G Install nut (12) and rod end (13) to connecting link (10). accelerator, throttle and engine control governor after installation. H Install engine throttle control lever end of connecting link (10) with two flat washers (9) and new cotter pin (8). I Remove bolt (5) and flat washer (6). Install throttle control lever (7), flat washer (6), and bolt (5), at transmission. J Install rod assembly (4) and spring (3) with three flat washers (2) and two new cotter pins (1). TA57222 7-23 Change 2 TM 9-2350-267-20
