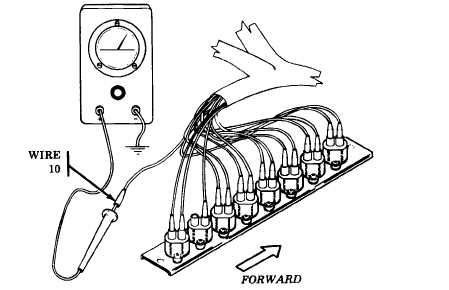

G Disconnect wire 10 at circuit breaker input and check wire 10
for voltage by placing red lead of multimeter in wire and black
lead to ground. If voltage is present, replace circuit breaker
(p 6-54). If voltage is not present, repair wire 10 feed circuit from
bulkhead disconnect to circuit breaker (p 6-77).

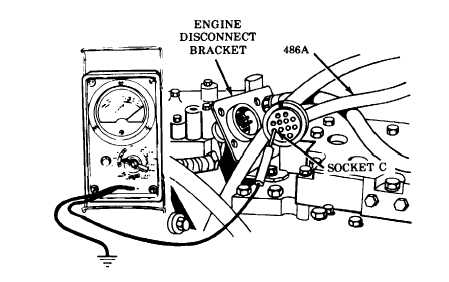

H Disconnect wire 486A at engine disconnect bracket. Check for
voltage in socket C by placing red multimeter lead in socket
C and black lead to ground. If voltage is present, repair or
replace wire 486A from engine disconnect bracket to fuel
solenoid (Appx F). If no voltage, go to step I.
TA310456
2-99
TM 9-2350-267-20
