HEATING AND VENTILATING DUCT AND HEAT SHIELDS: REMOVAL AND INSTALLATION
14-62
Change 4
TM 9-2350-267-20
REMOVAL
A Remove flexible hoses from personnel heater and personnel ventilating fan
(p 14-61).
B

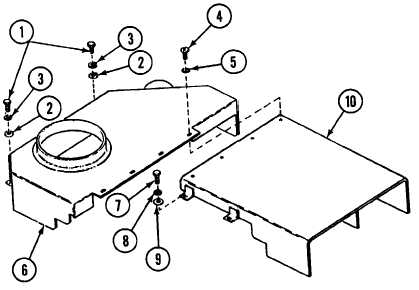

Remove two screws (1), two flat washers (2) and two lockwashers (3).
C Remove four screws (4) and four lockwashers (5). Discard lockwashers.
D Remove duet (6).
E
Remove four screws (7), four lockwashers (8) and four flat washers (9).
Discard lockwashers.
F
Remove duet (10).
INSTALLATION
Reverse order of removal using new lockwashers.
