TM 9-2350-261-20-4
REPLACE SMOKE GENERATOR INTERNAL CABLE ASSEMBLY (M1059
0702 00
ONLY) -- Continued
REMOVAL
WARNING
Before you do any maintenance, discharge all capacitors to ground or electrical shock could
injure personnel.
NOTE

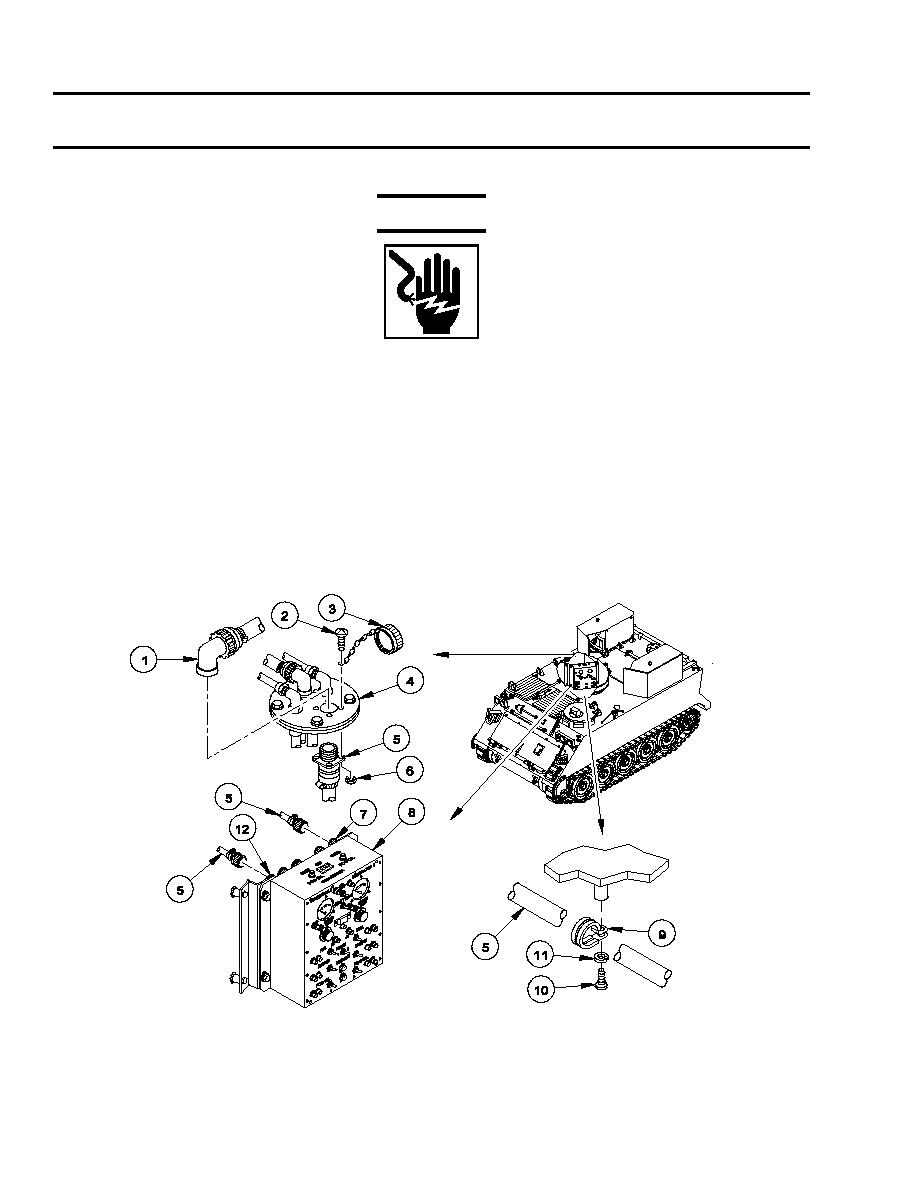

Left and right cable assemblies are replaced the same way, except left side cable assembly has
six clamps and right side has only one. Left side is shown.
1.
Disconnect cable (5) from jack 1J3 (left) (7) or 1J4 (right) (12) on back of control panel (8).
2.
Remove six screws (10), lockwashers (11), clamps (9), and cable (5) from hull. Discard lockwashers.
3.
Remove connector (1) attached to cable (5) through access plate (4).
4.
Remove four screws (2), dust cap (3), locknuts (6), and cable (5) from access plate (4). Discard locknuts.
