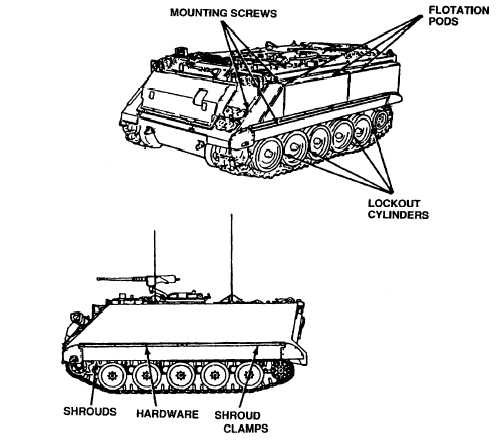

TM 9-2850-261-20-1 Table 2-1. Unit Level Preventive Maintenance Checks and Services for M113A2 FOV Itern Interval Item To Procedure Not Mission No. Be Capable If: Inspected 25 Semi- Suspen- Replace leaking suspension lockout Annual sion Lock- cylinders (page 28-74) out Cylin- ders (M741A1 only) 26 Semi- Track Replace torn shrouds. Tighten or re- Annual Shroud place loose or missing hardware. Re- pair bent shroud clamps. 27 Semi- Flotation Repair or replace flotation pods that Annual Pods have bulging foam (page 24-215). (M741A1 only) Tighten all flotation pod mounting screws. 2-58 Change 3
