S E T U P C O M M A N D P O S T T E N T ( C O V E R E D E X T E N S I O N ) ( M 5 7 7 A 2 O N L Y )

TM-9-2350-261-10 Recovery Vehicle Full Tracked: Medium M88A1 NSN 2350-00-122-6826 Winch Power Takeoff and Hoist System Manual
Page Navigation
439

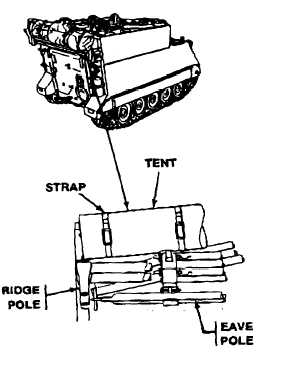

TM 9-2350-261-10 S E T U P C O M M A N D P O S T T E N T ( C O V E R E D E X T E N S I O N ) ( M 5 7 7 A 2 O N L Y ) D E S C R I P T I O N This task covers: Set Up Tent (page 4-26). Add Additional Tents (page 4-30). INITIAL SETUP Personnel Required: Equipment Conditions: Driver crew Carrier stopped S E T U P T E N T 1. Lower ramp until it is level with carrier floor (page 2-153). N O T E Get the staking pins and tent lights from their stowed position under the left forward table and set them outside. 2. 3. Unfasten four straps securing tent to top of carrier. Remove framework poles and legs from stowed position at tear of carrier. 4-26
