I N S T A L L - TM-9-2350-261-10

R E M O V E / I N S T A L L A U X I L I A R Y P O W E R U N I T ( M 5 7 7 A 2 A N D M 1 0 6 8 O N L Y )

TM-9-2350-261-10 Recovery Vehicle Full Tracked: Medium M88A1 NSN 2350-00-122-6826 Winch Power Takeoff and Hoist System Manual
Page Navigation
434

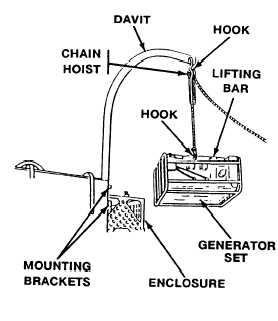

4. 5. 6. Position davit in mounting brackets. Attach chain hoist hooks to davit and lifting bar on generator set. WARNING Hanging loads could kill or injure you. Keep away from hanging loads and over- head equipment. Hoist generator set enough to clear enclosure. Swing generator set clear of carrier and lower it to the ground. Stow davit on top deck. Stow chain hoist in bag inside carrier, right side sponson. TM 9-2350-261-10 CAUTION Use only 83 octane gasoline in M577A2 and M1068 generator sets. I N S T A L L 1. Remove davit from stowed posi- tion on top deck of carrier and chain hoist from bag. 2. Position davit in mounting brackets. Attach chain hoist hooks to davit and lifting bar on generator set. GO TO NEXT PAGE Change 3 4-21
