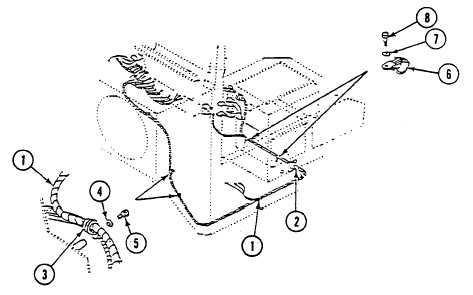

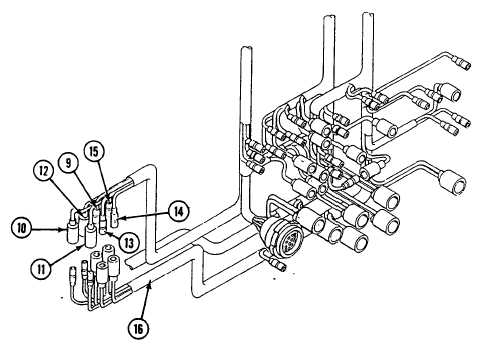

TM 9-2350-247-34REPLACE INSTRUMENT PANEL WIRING HARNESS (M548A3) — Continued 0021 00INSTALLATIONNOTEUse tags on leads to install them properly.1. Position wiring harness (1) in carrier cab and thread leads through battery box.2. Place new grommet (2) on wiring harness (1) and install in bulkhead.3. Install two clamps (3) on wiring harness (1) and secure to battery box floor with two new lock washers (4) and screws (5).4. Install three clamps (6) on wiring harness (1) and secure to bulkhead with three new lock washers (7) and screws (8).5. Connect seven circuit leads 75A (9), 15 (10), 75 (11), 40 (12), 27-38 (13), 25 (14), and 28 (15) on main wiringharness (16).0021 00-5
