TM 9-2350-247-34
REPAIR FAN DRIVE (M548A1) — Continued
0016 00

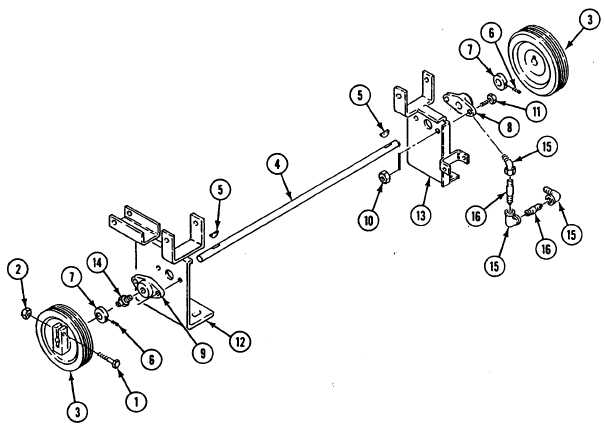

INSTALLATION
1.
Install three elbows (15) and two nipples (16) to bearing (8).
2.
Install fitting (14) to bearing (9).
3.
Install bearing (8) and bearing (9), four screws (11), and new lock nuts (10) on bracket (12) and bracket (13).
4.
Insert drive shaft (4) through bearing (8) and bearing (9) with the double key slot end through the rear bearing (8).
0016 00-4
