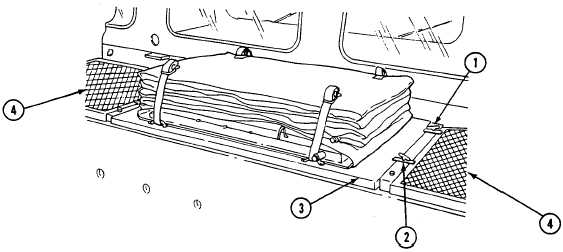

TM 9-2350-247-20-3 REMOVE/INSTALL TOP ACCESS COVER AND GRILLES (M548A1) 0390 00 THIS WORK PACKAGE COVERS: Removal (page 0390 00-1). Installation (page 0390 00-1). INITIAL SETUP: Maintenance Level Unit Tools and Special Tools General Mechanic’s Tool Kit (WP 0541 00, Item 57) Personnel Required Unit Mechanic References See your -10 Equipment Condition Engine stopped (see your -10) Carrier blocked (see your -10) Heater exhaust pipe removed (WP 0479 00) Engine exhaust pipe removed (WP 0209 00) REMOVAL 1. Loosen four T-handles (1). 2. Turn four clamps (2) and remove access cover (3) and two grilles (4) from carrier. INSTALLATION 1. Install two grilles (4) and access cover (3) on hull with four clamps (2). 2. Tighten four T-handles (1). FOLLOW-THROUGH STEPS 1. Install engine exhaust pipe (WP 0209 00). 2. Install heater exhaust pipe (WP 0479 00). END OF TASK 0390 00-1/2 blank
