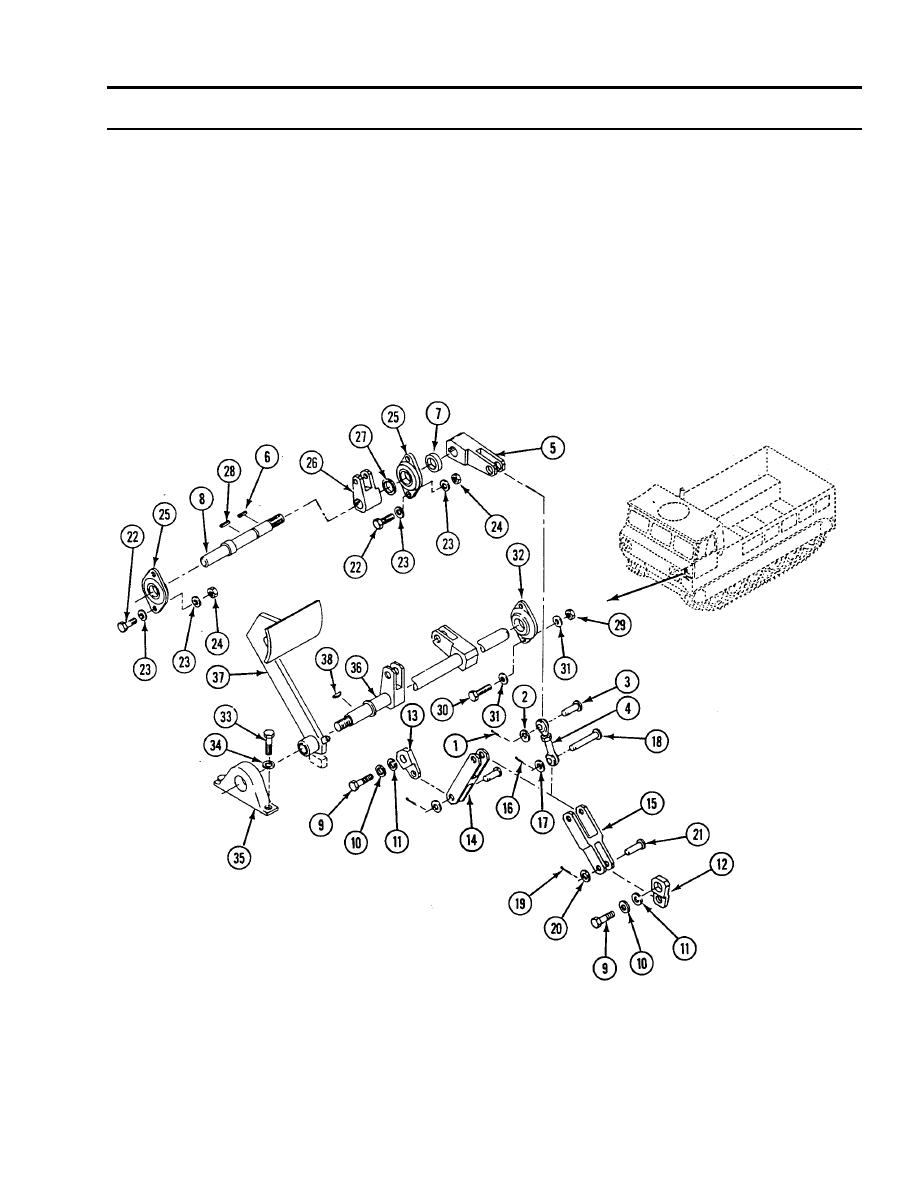

REPLACE BRAKE CONTROL LINKAGE (M548A3) -- Continued
0348 00
6.
Remove cotter pin (1), washer (2), and pin (3) securing connecting link (4) to connecting link (5). Discard cotter pin.
7.
Remove connecting link (5), key (6), and spacer (7) from shouldered shaft (8).
8.
Remove two screws (9), washers (10), lock washers (11), first remote control lever (12) with link (14), second remote
control lever (13) with link (15) and connecting link (4) from carrier. Discard lock washers.
9.
Remove cotter pin (16), washer (17), and pin (18) securing connecting link (4) to link (14) and to link (15). Discard
cotter pin.
10. Remove two cotter pins (19), washers (20), and pins (21) securing link (14) and securing link (15) to remote control lever
(12) and remote control lever (13). Discard cotter pins.
11. Remove four screws (22), eight washers (23), and four lock nuts (24) securing two bearings (25) with shouldered shaft
(8). Slide left bearing off shaft. Slide shaft from hull brackets and remove link (26) from shaft. Remove link, shaft,
spacer (27), and bearing from carrier. Discard lock nuts.
