TM 9-2350-247-20-2
REMOVE/INSTALL INSTRUMENT PANEL (PARTIAL) -- Continued
0256 00
2.

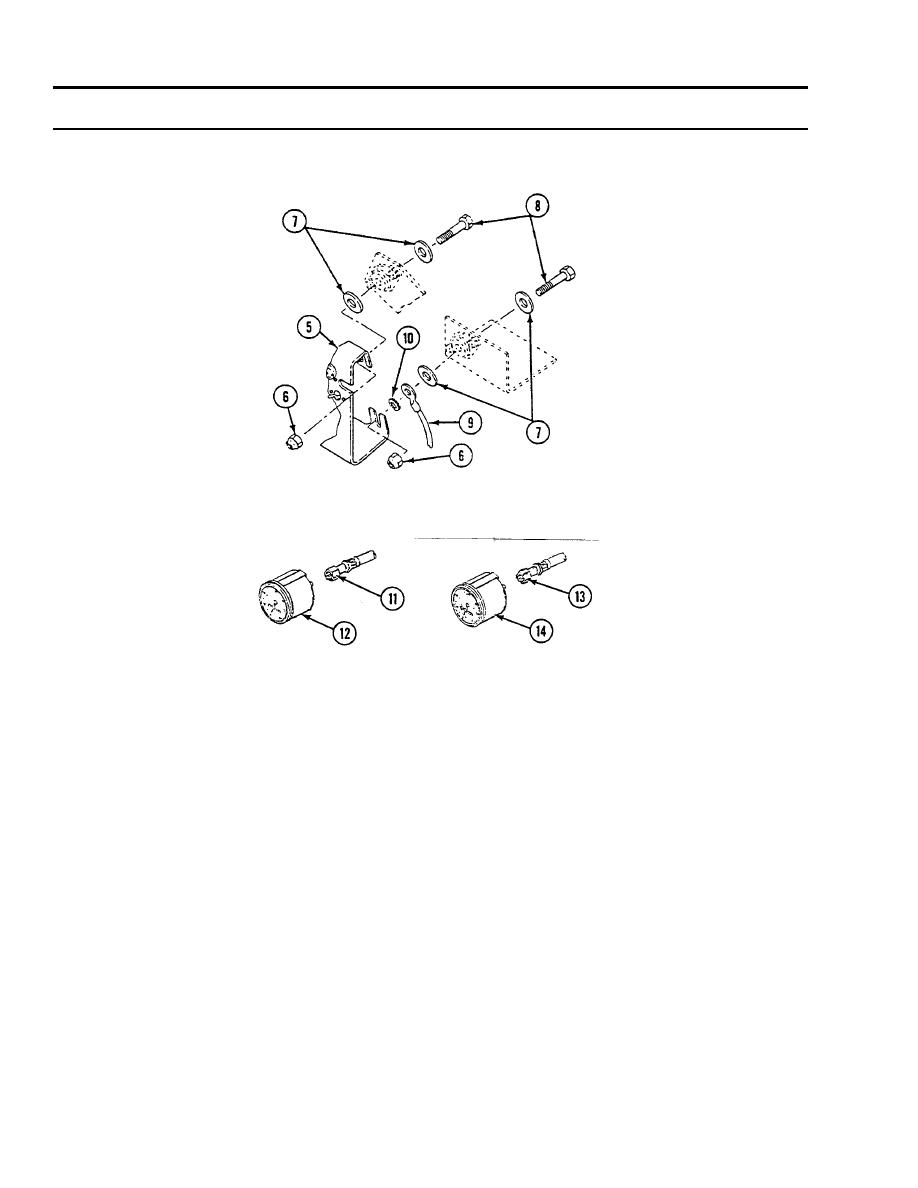

Remove four locknuts (6), eight washers (7), four screws (8), negative lead (9), and lock washer (10) from instrument
panel (5) and four bulkhead mounts. Discard locknuts and lock washer.
3.
Disconnect speedometer flexible shaft (11) from speedometer (12).
4.
Disconnect tachometer flexible shaft (13) from tachometer (14).
NOTE
If more clearance is needed behind instrument panel, loosen wiring harness clamps.
5.
Pull instrument panel (5) away from bulkhead to get to rear of instrument panel.
0256 00-2
