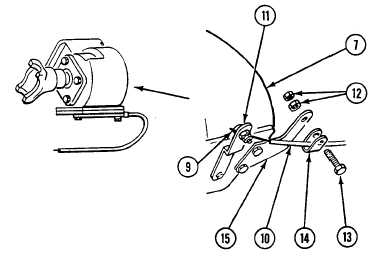

TM 9-2350-247-20-1REMOVE/INSTALL POWER PLANT (M548A1) — Continued 0130 0010. Disconnect winch power takeoff control cable from winch power takeoff.a. Loosen setscrew (9) that secures control cable (10) to actuating lever (11).b. Remove two nuts (12), screw (13), and clamp (14) that secure control cable (10) to control bracket (15).c. Remove control cable (10) from power takeoff (7).11. Remove transmission-to-differential propeller shaft (WP 0332 00).12. If carrier is equipped with engine coolant heater kit, disconnect coolant hoses.a. Unscrew heater-to-engine coolant hose (1) from nipple (2) at engine coolant heater (3).b. Unscrew pump-to-engine outlet hose (4) from nipple (5) at engine outlet shutoff valve (6).0130 00-6
