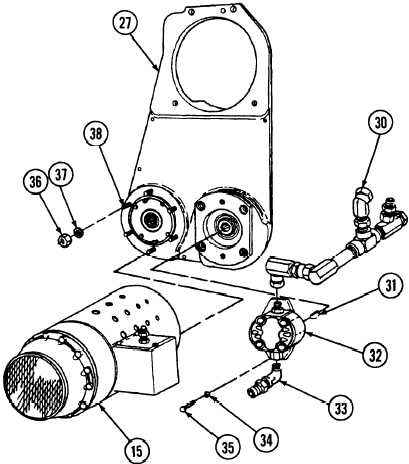

12-3. APU GEARCASE REPAIR (continued).
8.
9.
10.
11.
12.
13.
Install key (31) in pump (32) shaft.
WARNING
Sealant adhesive can bum easily, can give off harmful vapors, and is harmful to skin
and clothing. To avoid injury or death, keep adhesive away from open fire and use in
a well-ventilated area. If adhesive gets on skin or clothing, wash immediately with
soap and water.
Apply sealant adhesive to threads of screws (35). Install pump (32) in housing (27) and secure with two screws
(35) and new lock-washers (34).
Install six new nuts (36) and washers (37) on studs (38).
Install generator (15) over six nuts (36) and washers (37), and rotate generator (15) clockwise.
Tighten six nuts (36) to secure generator (15).
Install elbow (33) and fitting assembly (30) on pump (32).
