17-19. HYDRAULIC MOTOR REPLACEMENT.
This Task Covers:
a. Removal
b. Installation
lnital Setup:
Tools/Test Equipment:
Equipment Conditions:
l Drain pan (Item 14, Appendix l)
l Vehicle parked on level ground (refer to
l General mechanic's tool kit (Item 24,
TM 9-2350-287-10).
Appendix l)
l Conveyor deployed (refer to
. .
TM 9-2350-287-10).
Materials/Parts:
l Hydraulic ball valve closed
l Lockwasher (4) (ltem 184, Appendix H)
TM 9-2350-287-10).
(refer to
a.
REMOVAL
For correct
NOTE
installation, tag hydraulic hoses when removed.
1.
2.
Position drain pan under hydraulic motor (1).

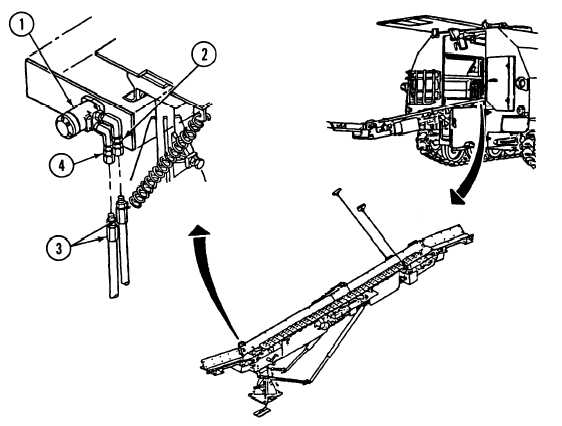

Disconnect two hydraulic hoses (3) from two adapters (2 and 4) on hydraulic motor (1).
