TM 9-2350-287-20-2
15-38. APU COMPARTMENT SIDE DOOR AND HINGE ASSEMBLY REPAIR (continued).
11.
12.
e.
1.
2.
3.
4.
5.
6.
7.
8.
9.

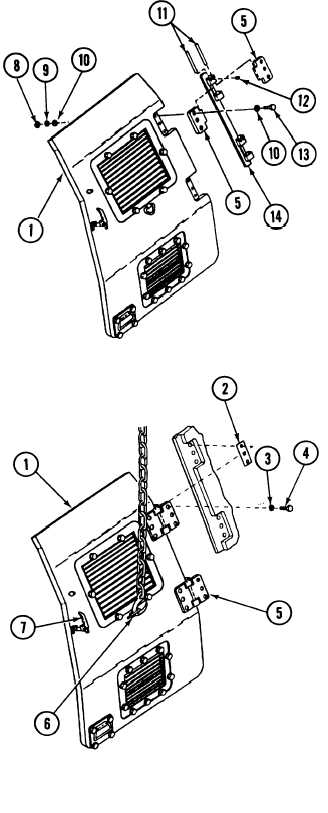

Install four hinge halves (5) on bar (14) with four
hinge pins (11 ).
Secure four hinge pins (11 ) with four spring pins
(12).
INSTALLATION
Install bar (14) with four hinge halves (5) attached
on APU side compartment door (1).
Install six nuts (8), 12 washers (1 O), six new
lockwashers (9), and six screws (13) on two hinge
halves (5).
Install sling on lifting lug (6) and hoist, and take up
slack.
WARNING
Personnel must stand clear during lifting
operations. A swinging or shifting load can
cause severe injury.
NOTE
An assistant is needed to
properly position APU
compartment side door.
Using hoist, lift door (1) into position on vehicle.
Turn APU door handle (7) to close door (1 ).
Install two hinge assemblies (5) and shims (2), if
any, on vehicle with six new Iockwashers (3) and
screws (4).
Remove sling from lifting lug (6) and hoist.
Turn APU door handle, and open door (1). If door
(1) binds, proceed to step 9. If door (1) opens
without binding, door (1) is properly adjusted.
Loosen six screws (4) on two hinge assemblies (5).
With an assistant, position door (1) until it opens
and closes without binding. Tighten six screws (4).
FOLLOW-ON MAINTENANCE:
• None
15-95
|
