TM 9-2350-287-20-2
15-32. UPPER REAR DOOR SEALS REPLACEMENT.
This Task Covers:
a. Removal
b. Installation
Initial Setup:
Tools/Test Equipment:
• General mechanic’s tool kit (Item 24,
Appendix 1)
Materials/Parts:
• Rag (Item 56, Appendix D)
Equipment Conditions:
• Vehicle parked on level ground (refer to
TM 9-2350-287-10).
•Adhesive, rubber (Item 5, Appendix D)

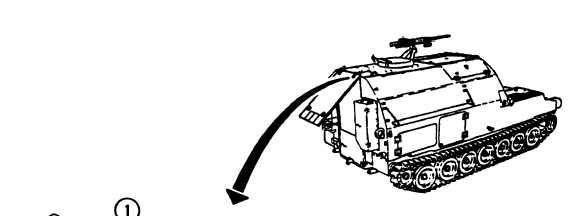

• Upper rear door opened 45 degrees from
• Drycleaning solvent (Item 28, Appendix D)
closed position (refer to TM 9-2350-287-10).
a.
REMOVAL
1.

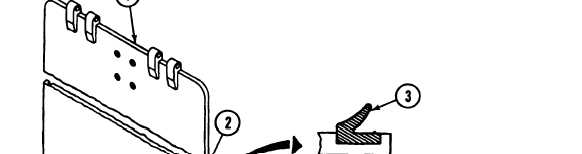

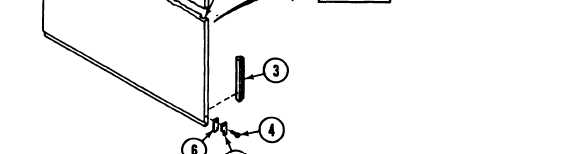

Remove three screws (4), retainer (5), and seal (6) from upper rear door (l).
2.
Scrape seal (3) from channel (2) in upper rear door (1).
15-78
|
