BULKHEAD TO HEADLIGHT/BILGE PUMP WIRING HARNESS (1 0921380) REPAIR (continued)

7-43. BULKHEAD TO HEADLIGHT/BILGE PUMP WIRING HARNESS (10921380) REPAIR

BULKHEAD TO HEADLIGHT/BILGE PUMP WIRING HARNESS (1 0921380) REPAIR (continued) - TM-9-2350-287-20-1_819

TM-9-2350-287-20-1 Carrier Ammunition Tracked M992A21 (2350-01-352-3021) EIC:AE6 Manual
Page Navigation
790

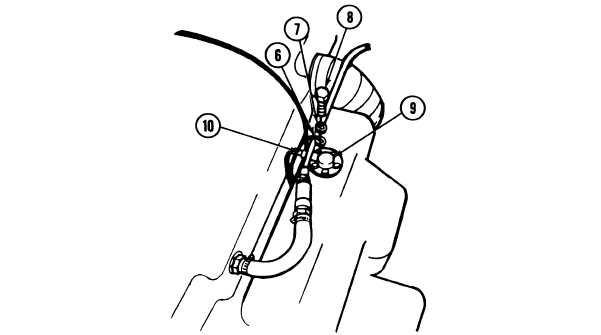

TM 9-2350-287-20-1 7-43. BULKHEAD TO HEADLIGHT/BILGE PUMP WIRING HARNESS (1 0921380) REPAIR (continued). 3. 4. 5. 7-120 Remove screw (8), washer (7), and ground lead (6) from lower fuel tank fuel level transmitter (9). Remove connector No. 31 (1 O) from lower fuel tank fuel level transmitter (9). Remove two connectors No. 76 (11 and 14) from left and right fuel pumps (12 and 13).
