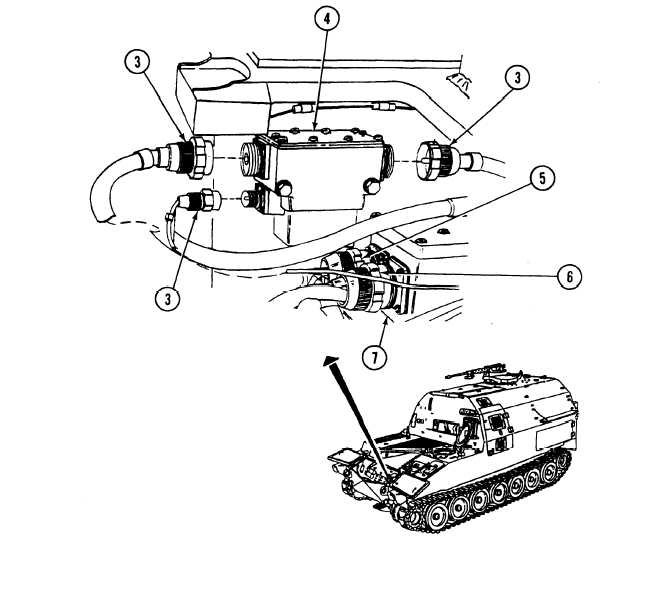

TM 9-2350-287-20-1 7-3. VOLTAGE REGULATOR, BILGE PUMP RELAY, STARTER RELAY, CIRCUIT BREAKER, AND MOUNTING BRACKETS REPLACEMENT (continued). 2. Disconnect three electrical connectors (3) from master relay (4). 3. 4. 5. 6. Disconnect electrical connector (11 ) from rectifier (10). Disconnect starter protection relay lead 503 (12) from wiring harness 12268308 wiring harness lead (13). Disconnect two electrical connectors (5 and 6) from voltage regulator (7). Disconnect electrical connector (9) from starter relay (8). 7 -6
