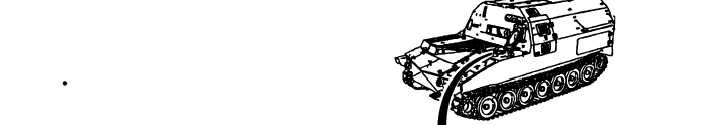

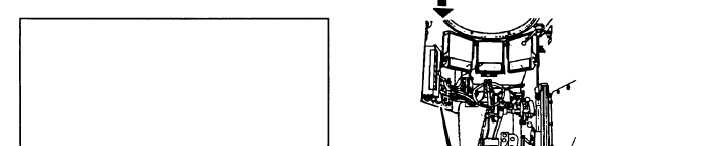

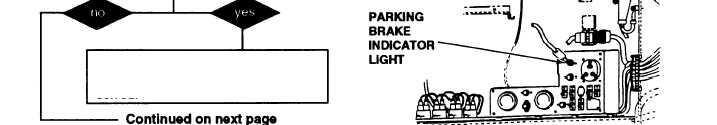

TM 9-2350-287-20-12-19. TROUBLESHOOTING CHART (continued).h. LIGHTS (continued).(8) PARKING BRAKE INDICATOR LIGHT FAILS TOOPERATE. Parking brake is set.Initial Setup:Tools/Test Equipment:. Driver’s portable instrument panel coverDigital multimeter (DMM) (Item 13, Appendix I)removed (para 7-6).General mechanic’s tool kit (Item 24,Parking brake engaged (refer toAppendix I)TM 9-2350-287-10).Portable instrument panel stowed in outsidePersonnel Required: Twoposition (refer to TM 9-2350-287-10).Equipment Conditions:MASTER switch set to OFF (refer to TM9-2350-287-10).NOTEl Instead of using multimeterfor voltage check, STE/lCEtroubleshooting, INDIVIDUALBATTERY VOLTAGE TEST-TEST89 maybe performedl Instead of using multi meterfor continuity check, STE/lCEtroubleshooting, TEST 91 maybe performed.A. 1. Remove lens and light bulb from parkingbrake indicator light socket.2. Place red lead of multimeter on indicatorlight socket center contact and ground blacklead.3. Turn MASTER switch ON (refer to TM 9-2350-287-10).4. Check for 24 ± 3 vdc.5. Turn off MASTER switch (refer to TM 9-2350-287-10).Is voltage indicated?Replace parking brake indicator light2-160bulb (para 7-9). Verify problem issolved.
