TM-9-2350-287-20-1 Carrier Ammunition Tracked M992A21 (2350-01-352-3021) EIC:AE6 Manual
Page Navigation
139

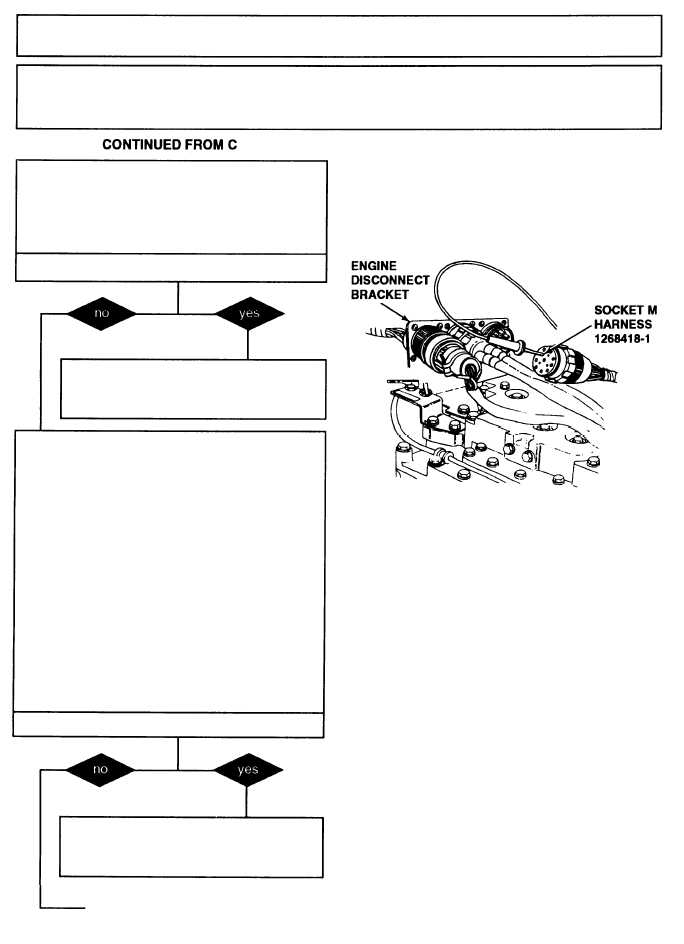

TM 8-2350-287-20-1 2-19. TROUBLESHOOTING CHART (continued). g GAGES (continued). (3) TRANSMISSION OIL PRESSURE GAGE FAILS TO OPERATE. All other gages operate properly (continued). C. 7. Observe transmission oil pressure gage on instrument panel. 8. Turn MASTER switch OFF (refer to TM 9- 2350-287-1 O). Does gage indicate maximum pressure? Replace transmission oil pressure transmitter (para 7-40). Verify problem is solved. D. 1. Reconnect wire 321 to transmission oil pres- sure transmitter. 2. Disconnect harness 12268418-1 connector at engine disconnect bracket. 3. Insert red multimeter probe into socket M of harness connector 12268418-1 at engine dis- connect bracket and ground black lead. 4. Turn MASTER switch ON (refer to TM 9- 2350-287-10). 5. Check for 24 ± 3 vdc. 6. Turn MASTER switch OFF (refer to TM 9- 2350-287-1O). Is voltage indicated? Repair wire 321 or replace harness 12268308 (para 7-50). Verify problem is solved. Continued on next page 2-109
