TM 9-2350-287-10
STENCIL MARKINGS

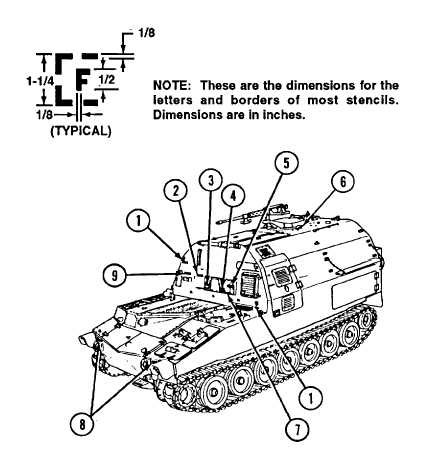

Apply stencils to clean, painted surfaces only. Use black enamel (Class A, specification TT-E -489). When possible,
position stencil so it is covered by the item named when the item is stowed in its proper place. Stencil dimensions are
shown below; stencil locations are shown on pages 2-205 through 2-211.
1.
TOW CABLE
2.
WATER CAN
3.
AXE
4.
MATTOCK
5.
SHOVEL
6.
LIFTING BEAM
7.
MATTOCK HANDLE
8.
LIFT HERE
9.
TRACK FIXTURE
2-205
