PATCH PANEL BOX A10 INOPERATIVE (M1068A3 ONLY)Continued

PATCH PANEL BOX A10 INOPERATIVE (M1068A3 ONLY)Continued - TM-9-2350-277-34_90

EXTERNAL COMMUNICATION BOX A11 INOPERATIVE (M1068A3 ONLY)

TM-9-2350-277-34 Carrier Personnel Full Tracked Armored M113A3 2350-01-219-7577 (EIC AE7) Carrier Command Post Light Tracked M577A3 2350-01-369-6085 (EIC AE7) Manual
Page Navigation
64

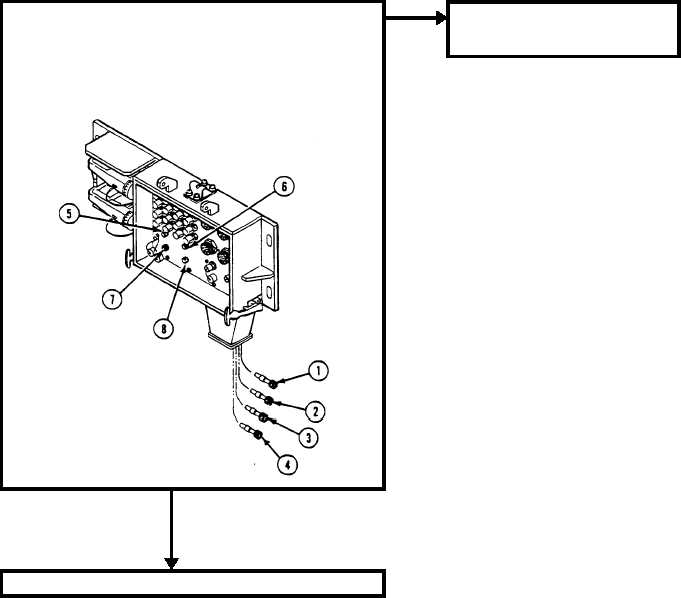

TM 9-2350-277-34 PATCH PANEL BOX A10 INOPERATIVE (M1068A3 ONLY)—Continued 0010 00 G2Y 1. Measure resistance between cable plugs and pins on jacks of External Communication Box A11 as follows: W111 plug P1 (1) and pin of jack J115 (5) W112 plug P1 (2) and pin of jack J116 (6) W113 plug P1 (3) and pin of jack J117 (7) W114 plug P1 (4) and pin of jack J118 (8) 2. Does multimeter read 0 ohms for each measurement? YES NO G2YN 1. Replace cables W111, W112, W113, and/or W114 (WP 0106 00). 2. Verify no faults found. G3Y 1. Verify no faults found. 0010 00-15/16 blank
