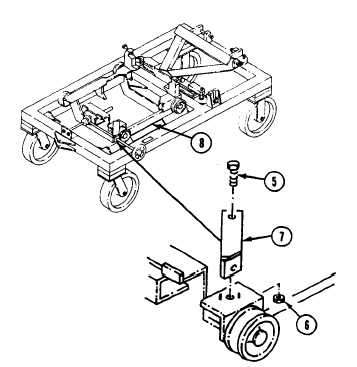

TM 9-2350-277-34 REPAIR ENGINE AND TRANSMISSION STAND — Continued 0070 00 NOTE If hand wheel bushing requires replacement, go to Step 7. If not, go to Step 11. 7. Remove screw (5) and locknut (6) securing bracket (7) to engine support (8). Remove bracket. Discard locknut. 8. Place bracket (7) in press and push out bushing (9). Note which side of bracket bushing flange was on. 9. Press new bushing (9) into bracket (7). 0070 00-8
