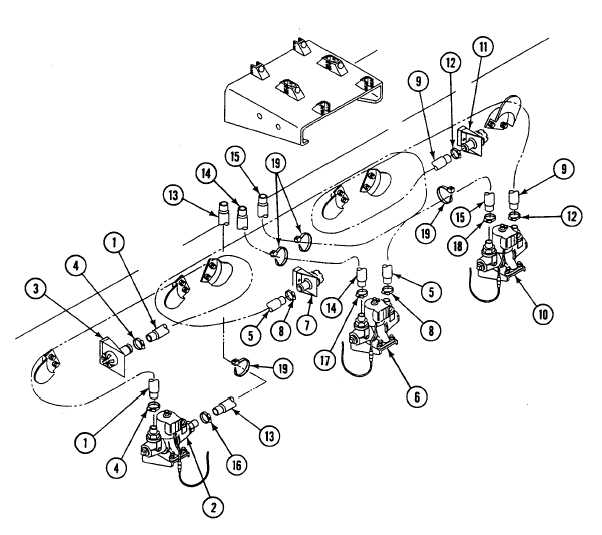

TM 9-2350-277-20-5 REPLACE M13 NBC FILTERS AND HOSES (M577A3 ONLY) — Continued 0786 00 4. Install hose (1) on heater (2) and connector (3) and tighten two clamps (4). 5. Install hose (5) and on heater (6) and connector (7) and tighten two clamps (8). 6. Install hose (9) on heater (10) and connector (11) and tighten two clamps (12). 7. Install three hoses (13)(14)(15) on heaters (2)(6)(10) and tighten three clamps (16)(17)(18), respectively. 8. Secure wiring harness to three hoses (13)(14)(15) with new straps (19). 0786 00-9
