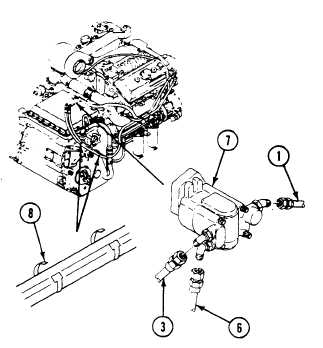

TM 9-2350-277-20-5 REPLACE POWER PLANT HYDRAULIC HOSES — Continued 0668 00 5. Connect hose (6) to hydraulic pump (7). 6. Connect hose (3) to hydraulic pump (7). 7. Secure two hoses (3)(6) with two new straps (8). 8. Connect hose (1) to hydraulic pump (7). 0668 00-4
