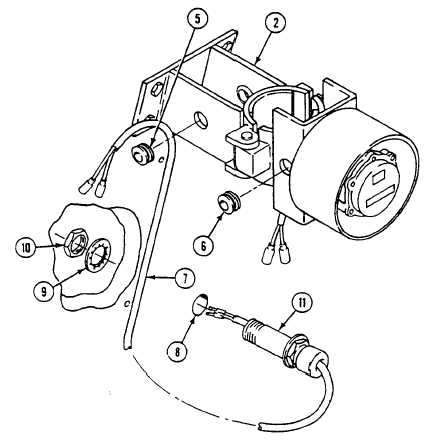

TM 9-2350-277-20-4 REPLACE/REPAIR ANTENNA MAST BRACKET ASSEMBLY, TAILLIGHT WIRING HARNESS, AND BRACKET (M1068A3 ONLY) — Continued 0625 00 7. Install taillight wiring harness (7) with shield through mounting hole (8) in hull. a. Install lockwasher (9) and nut (10) over circuit leads and onto shield (11). Tighten nut securely on shield. b. Install the other end of wiring harness (7) through grommet (5) on antenna mast bracket (2). Route wires and connectors for taillight through grommet (6). 0625 00-11
