529

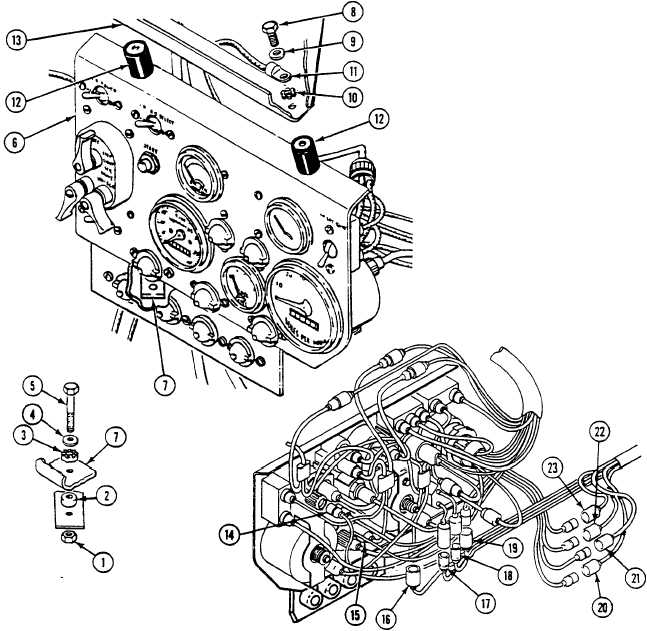

TM 9-2350-277-20-3 REPLACE REAR MAIN WIRING HARNESS (M1068A3 ONLY) — Continued 0365 00 72. Disconnect circuit 451B lead (15) from rear bilge pump ON indicator light. 73. Disconnect circuit 38 lead (16) from instrument panel wiring harness. 74. Disconnect circuit 450 lead (17), circuit 450B lead (18), and circuit 451A lead (19) from bilge pump switch. 75. Disconnect circuit 21 lead (20), circuit 22 lead (21), circuit 23 lead (22), and circuit 24 lead (23) from front main wiring harness. 0365 00-15
