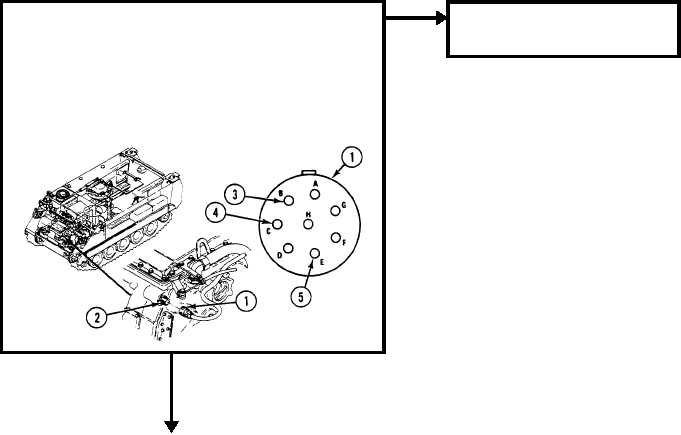

TM 9-2350-277-20-1TRANSMISSION DOES NOT REVERSE 0070 00INITIAL SETUP:Maintenance LevelUnitTools and Special ToolsGeneral Mechanic’s Tool Kit (WP 0926 00, Item 65)Multimeter (WP 0926 00, Item 30)Electrical Connector Pliers (WP 0926 00, Item 31)Personnel RequiredUnit MechanicHelper (H)ReferencesSee your -10Equipment ConditionEngine stopped (see your -10)Carrier blocked (see your -10)Transmission in R positionTrim vane lowered (see your -10)Power plant access door open (see your -10)T1. Remove harness 12349810 plug (1) from transmission jack (2).2. Turn MASTER SWITCH to ON.3. Measure voltage between each socket on harness 12349810 plug(1) and ground. Multimeter should read 18 volts or more atsocket B (3), C (4), and E (5), and 0 volts for all remaining socketchecks.4. Does multimeter read less than 18 volts at sockets B (3), C (4),and E (5), or more than 0 volts at all remaining sockets?YESNOTN1. Faulty transmission, Beyond unitmaintenance repair.2. Notify supervisor.0070 00-1
