231

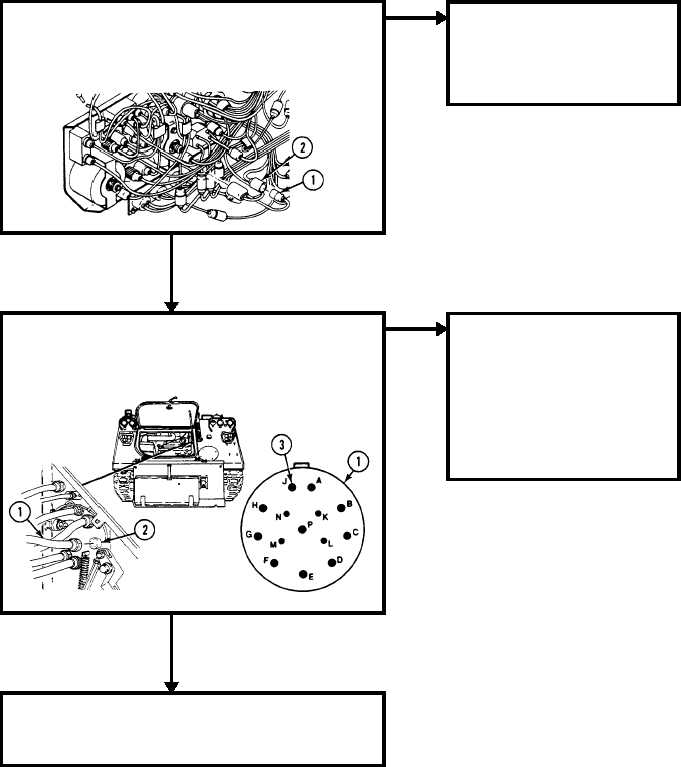

TM 9-2350-277-20-1 TRANS FILTER CLOGGED INDICATOR MALFUNCTIONS—Continued 0059 00 5Y 1. Remove harness 12349813 circuit 323 plug (1) from cable assembly 12349858 circuit 323 jack (2). 2. Measure resistance between harness 12349813 circuit 323 plug pin (1) and ground. 3. Does multimeter read more than 0 ohms? YES NO 5YN 1. Remove jumper wire and install harness 12349813 plug on pressure differential switch jack. 2. Replace cable assembly 12349858 circuit 323 (WP 0290 00). 3. Verify no faults found. 6Y 1. Remove harness 12349810 plug (1) from harness 12349813 jack (2) at carrier bulkhead. 2. Measure resistance between harness 12349810 plug (1) pin J (3) and ground. 3. Does multimeter read 0 ohms? YES NO 6YN 1. Install harness 12349813 circuit 323/ 27R plug on TRANS FILTER CLOGGED indicator jack. 2. Install harness 12349813 circuit 323 plug on cable assembly 12349858 circuit 323 jack. 3. Remove jumper wire and replace harness 12349810 circuit 323 (WP 0360 00). 4. Verify no faults found. 7Y 1. Remove jumper wire and install harness 12349810 plug on pressure differential switch. 2. Replace harness 12349813 circuit 323 (WP 0361 00). 3. Verify no faults found. 0059 00-3
