TM 9-2350-277-20-1
TRANSMISSION OIL
LOW PRESSURE
INDICATOR MALFUNCTIONS—Continued
0056 00
A2Y

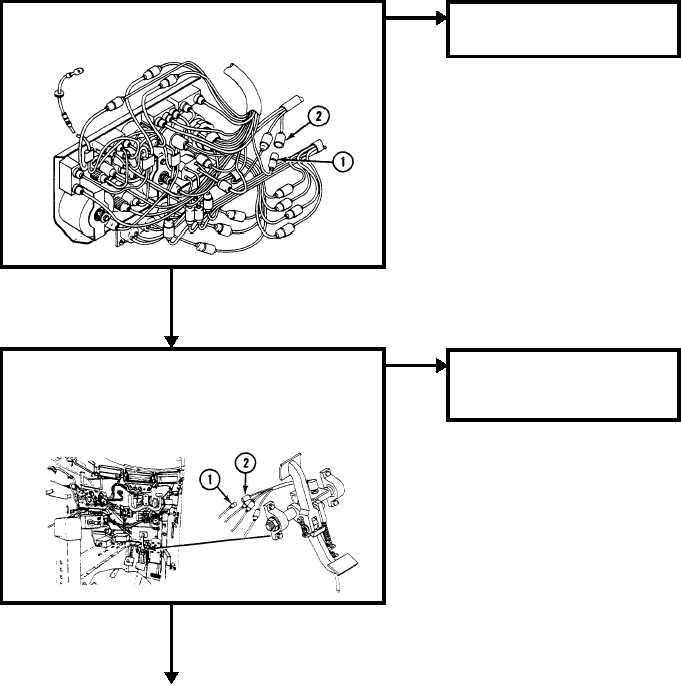

1. Remove harness 12349813 circuit 366 plug (1) from harness
12349881 circuit 366 jack (2) behind instrument panel.
2. Is TRANS OIL LOW PRESS indicator still on?
YES
NO
A2YN
1. Replace harness 12349813
(WP 0360 00).
2. Verify no faults found.
A3Y
1. Install harness 12349810 plug on harness 12349813 at carrier
bulkhead.
2. Install harness 12349810 circuit 366 on trans oil low press switch.
3. Remove harness 12349881 circuit 366 plug (1) from stop light
switch jack (2).
4. Is TRANS OIL LOW PRESS indicator still on?
YES
NO
A3YN
1. Shorted harness 12349881 circuit
366. Beyond unit maintenance
repair.
2. Notify supervisor.
0056 00-3
