6-92
TM 9-2350-267-20
AIR CLEANER BLOWER MOTOR RELAY WIRING HARNESS (10897991): REMOVAL, DISASSEMBLY, ASSEMBLY AND INSTALLATION
REMOVAL
WARNING
Turn OFF MASTER switch. Disconnect battery
ground cables.
A Remove portable instrument panel (p 6-19).

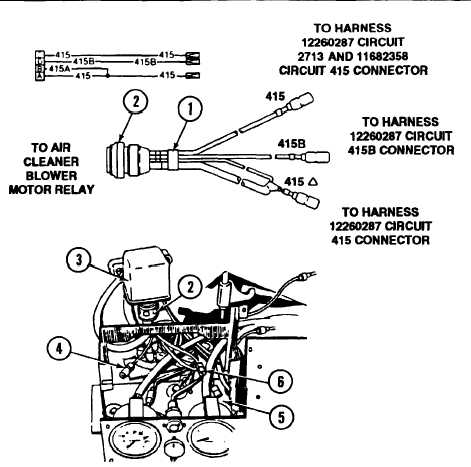

B Disconnect harness (1) plug (2) from air cleaner blower motor relay
(3).
C Disconnect three connectors (4, 5 and 6) from wiring harness circuit
Connectors.
D Remove harness (1) from vehicle.
DISASSEMBLY
NOTE
Remove electrical tape only from section of harness
to be disassembled.
A Remove section of electrical tape from harness branches.
B
Separate and isolate wiring harness branches.
C Disassemble wiring branch and replace defective wires (p 2-307).
ASSEMBLY
Reverse disassembly procedures.
INSTALLATION
Reverse removal procedures.
TA311123
