ENt%lNF
RRACKFT
TO
DRIVER’S
RULKHEAD
WIRING HARNESS (1 1593782): REMOVAL AND INSTALLATION
REMOVAL
WARNING
Turn MASTER switeh OFF. Disconnect battery ground
cables.

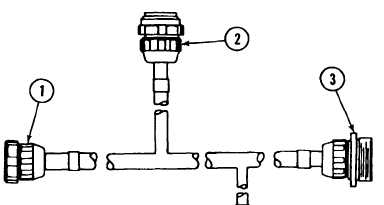

A Disconnect connector (1) from engine bracket receptacle.
B Disconnect connector (2) from master day box.
C Disconnect connector (3) from driver’s compartment bulkhead receptacle.
D

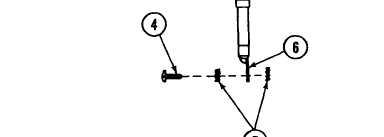

Remove screw (4) and two
lockwashers
(5) securing terminal
lug (6) to
bottom of bilge pump
relay
box. Discard lockwashers.
E Remove wiring harness.
INSTALLATION
A Position wiring harness in
engine compartment
and battery compartment
B Install terminal lug (6) to bottom of bilge pump
relay
box with screw (4) and
two new lockwashers (5).
C Connect connector (3) to driver’s compartment bulkhead receptacle.
D Connect
connector
(2) to master relay box.
E Connect connector (1) to engine bracket receptacle.
6-67
Change 1
TA312807
TM 9-2350-267-20
