219

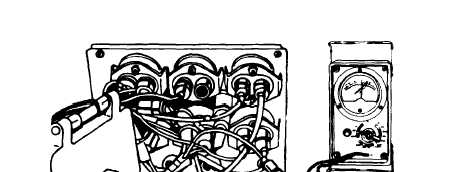

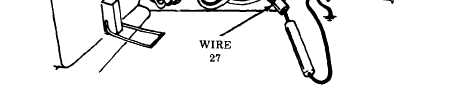

NOTE To trace circuit 27, check wiring harnesses 12260298 (p 6-89) and 12260287 (p 6-84). C Disconnect wire 27 from ENGINE OIL PRESSURE indicator, Place red multimeter lead in wire 27, ground black lead, and check for voltage. If voltage is present, replace ENGINE OIL PRESSURE indicator (p 6-21). f no voltage, repair or replace wire 27. Reconnect all wires. GAGES TRANSMISSION OIL TEMPERATURE GAGE NEEDLE DOESN’T MOVE OR ISN’T STEADY OR ACCURATE Troubleshoot transmission oil temperature (TRANSMISSION OIL TEMP) indicator circuit. 2-137 TA310496 TM 9-2350-267-20
