TM 9-2350-261-20-4
REPLACE SIGNAL PATCH PANEL BOX A10 (M1068 ONLY)
THIS WORK PACKAGE COVERS:
INITIAL SETUP:
Equipment Condition
Maintenance Level
Engine stopped (see your -10)
Unit
Carrier blocked (see your -10)
Tools and Special Tools
All external power disconnected (TM 11-7010-256-
12&P)
Battery ground lead disconnected (WP 0294 00)
Materials/Parts
Lockwasher (4)
Personnel Required
Signal Support System Specialist 31U10
REMOVAL
1.

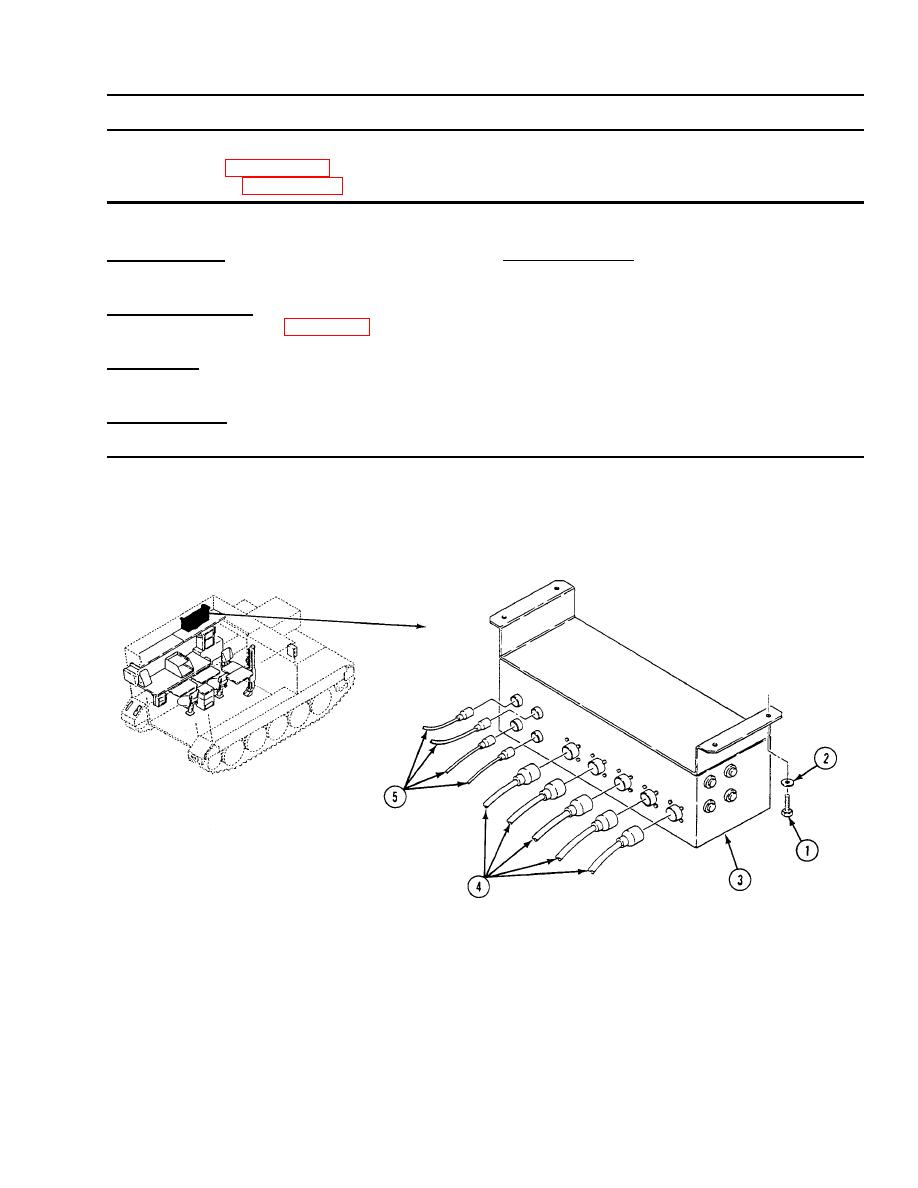

Remove four screws (1), lockwashers (2), and patch panel box (3) from hull top. Discard lockwashers.
2.
Tag and remove five cables (4) from rear of patch panel box (3).
3.
Tag and remove four leads (5) from rear of patch panel box (3).
