TM 9-2350-261-10
T o w c a b l e s c a n
snap and injure
personnel. Close
all hatch covers
b e f o r e y o u u se
t o w c a b l e s t o t o w
carrier. Clear personnel out of
danger area.
1.
2.
If blocked, unblock carrier tracks
(page 2-221).

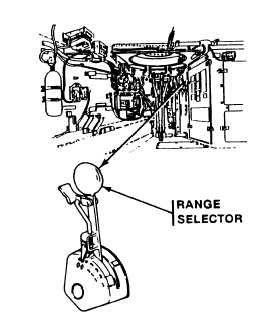

Shift range selector of disabled
carrier to N range (page 2-0.

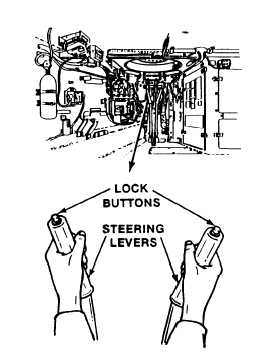

3. Release steering levers in disabled
carrier. Pull back on both levers
so the lock buttons pop up, then
ease the levers all the way
forward.
4. Start engine in recovery vehicle.
NOTE
Constant speed must be main-
tained while towing carrier.
CAUTION
You will damage transmission
and/or differential if you tow at
speeds higher than 10 mph (16
km/hr) or for a distance of more
t h a n 3 0 m i l e s . H a v e u n i t
maintenance disconnect drive
shaft between differential and
final drives if you MUST tow
faster than 10 mph (16 km/hr) or
farther than 30 miles.
5. Tow the carrier slowly. Do not
exceed 10 mph (16 km/hr). Do
not tow more than 30 miles.
2-250
