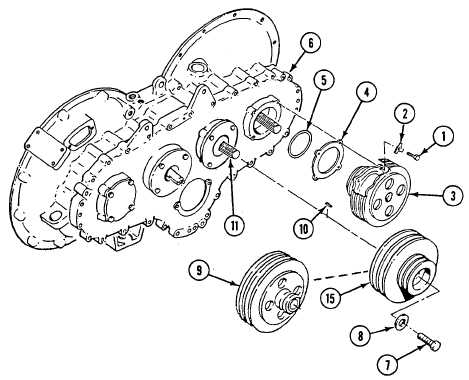

TM 9-2350-247-34 INSTALL AIR BRAKE KIT (M548A1) — Continued 0073 00 6. Install key (10) in fan drive shaft (11). 7. Install step pulley (15) on transfer gearcase (6) with washer (8) and screw (7). Torque screw to 144-180 lb-in (17 to 20 N•m). 8. Install shim (4), new packing (5), and generator drive assembly (3) on transfer gearcase (6) with four screws (1) and new key washers (2). Torque screws to 252-300 lb-in (29 to 33 N•m). 0073 00-4
