TM 9-2350-247-34
REPAIR CARGO COVER — Continued
0049 00
WARNING
Adhesive is flammable and can injure you. Keep it away from heat, sparks, and open flame.
Avoid repeated or prolonged breathing of vapors. Avoid contact with your skin.
NOTE

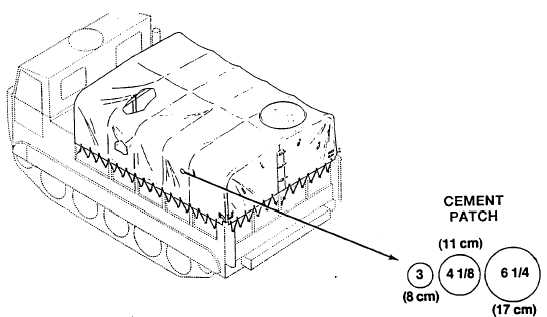

A hole or tear in the cargo cover less than 4-3/4 inches (12 cm) in diameter or length may be
repaired by a cement patch. The tear must not occur on seams, edges, or areas that support
hardware. For cement patch repair, do Step 2.
2.
Repair cargo cover with cement patch as follows:
a.
Cut patch to one of three sizes that will overlap damaged area with a margin of at least 3/4 inch (19 mm) on
all sides.
b.
Place board under damaged area for a flat working surface.
c.
Buff patch and damaged area of cargo cover with a wire brush.
d.
Center patch over damaged area. Apply adhesive to patch and patch edge with a cleaning brush, making a circle on
cargo cover.
e.
Lift patch. Apply adhesive to area of cargo cover inside adhesive circle.
f.
Allow adhesive to dry until tacky.
g.
Press cement surfaces together firmly with roller while tacky.
h.
Seal by wiping edge of patch with cleaning brush.
0049 00-3
