REPLACE OVERSIZE SCREW THREAD INSERTS WITH LOCK RING

Table 1. KEY-LOCKED SCREW THREAD INSERT TECHNICAL DATA

TM-9-2350-247-34 Carrier Cargo Tracked 6 Ton M548A12350010969356 (EIC: AEU) M548A3 2350013696081 (EIC: AE9) Manual
Page Navigation
301

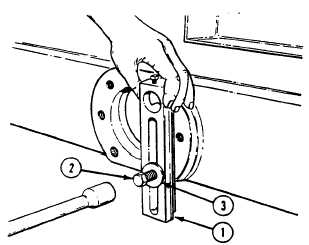

TM 9-2350-247-34 REPLACE OVERSIZE SCREW THREAD INSERTS WITH LOCK RING 0037 00 THIS WORK PACKAGE COVERS: Installation(page 0037 00-1). INITIAL SETUP: Maintenance Level Direct Support Tools and Special Tools General Mechanic’s Tool Kit (WP 0078 00, Item 68) Thread Insert Tool Kit (WP 0078 00, Item 70) Portable Electric Drill (WP 0078 00, Item 12) Portable Electric Drill (WP 0078 00, Item 13) Twist Drill Set (WP 0078 00, Item 15) Twist Drill Set (WP 0078 00, Item 16) Twist Drill (WP 0078 00, Item 17) Bearing Inserter (WP 0078 00, Item 30) Screw Thread Inserter (WP 0078 00, Item 32) Screw Threading Set (WP 0078 00, Item 63) Personnel Required Track Vehicle Repairer 63H References See your -10 See your -20 Equipment Condition Engine stopped (see your -10) Carrier blocked (see your -10) Road wheel support arm removed (see your -20) INSTALLATION 1. Align bushing hole of body (1) with existing insert hole in hull. NOTE Cap screw thread size must be the same size as inside thread of hull insert. 2. Install body (1) on hull. Secure with cap screw (2) and washer (3). Screw cap screw into a serviceable thread insert or tapped hole. 0037 00-1
