TM 9-2350-247-34
REPLACE RADIO RECEPTACLE/HEATER WIRING HARNESS — Continued
0024 00
7.

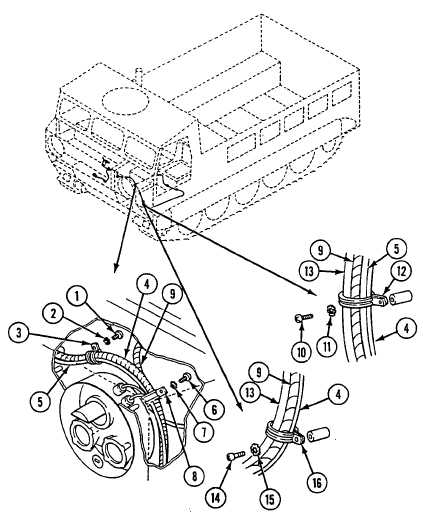

Remove harness clamp screw (1), lock washer (2) and clamp (3) securing main wiring harness (4) and radio receptacle
and heater wiring harness (5) on hull to right of left light well. Discard lock washer.
8.
Remove light well clamp screw (6), lock washer (7), and clamp (8) securing main wiring harness (4), power wiring
harness (9), and radio receptacle and heater wiring harness (5) to right of left light well. Discard lock washer.
0024 00-4
