REPLACE WALTER KIDDE CONTROL VALVE — Continued
0528 00

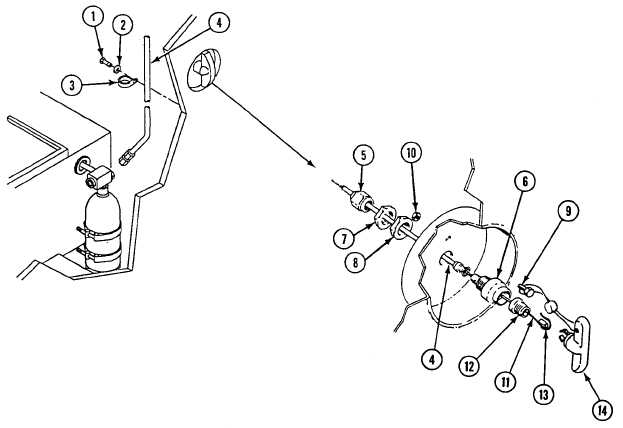

INSTALLATION
1.
Install screw (9) in bulkhead. Secure with new lock nut (10).
2.
Install tube reducer (6) through bulkhead. Secure with nut (8) and jam nut (7).
3.
Route cable (11) through tube (4), nut (5), and tube reducer (6).
4.
Secure cable (11) to tube reducer (6) with nut (5).
5.
Slide insert (12) on cable (11). Bend cable over wedge (13) and install wedge and cable in insert.
6.
Install insert (12) in handle (14).
