TM 9-2350-247-20-2
REPLACE INFRARED-BLACKOUT SELECT SWITCH
THIS WORK PACKAGE COVERS:
INITIAL SETUP:
References
Maintenance Level
Unit
See your -10
Tools and Special Tools
Equipment Condition
General Mechanic's Tool Kit (WP 0541 00, Item 57)
Engine stopped (see your -10)
Carrier blocked (see your -10)
Personnel Required
Unit Mechanic

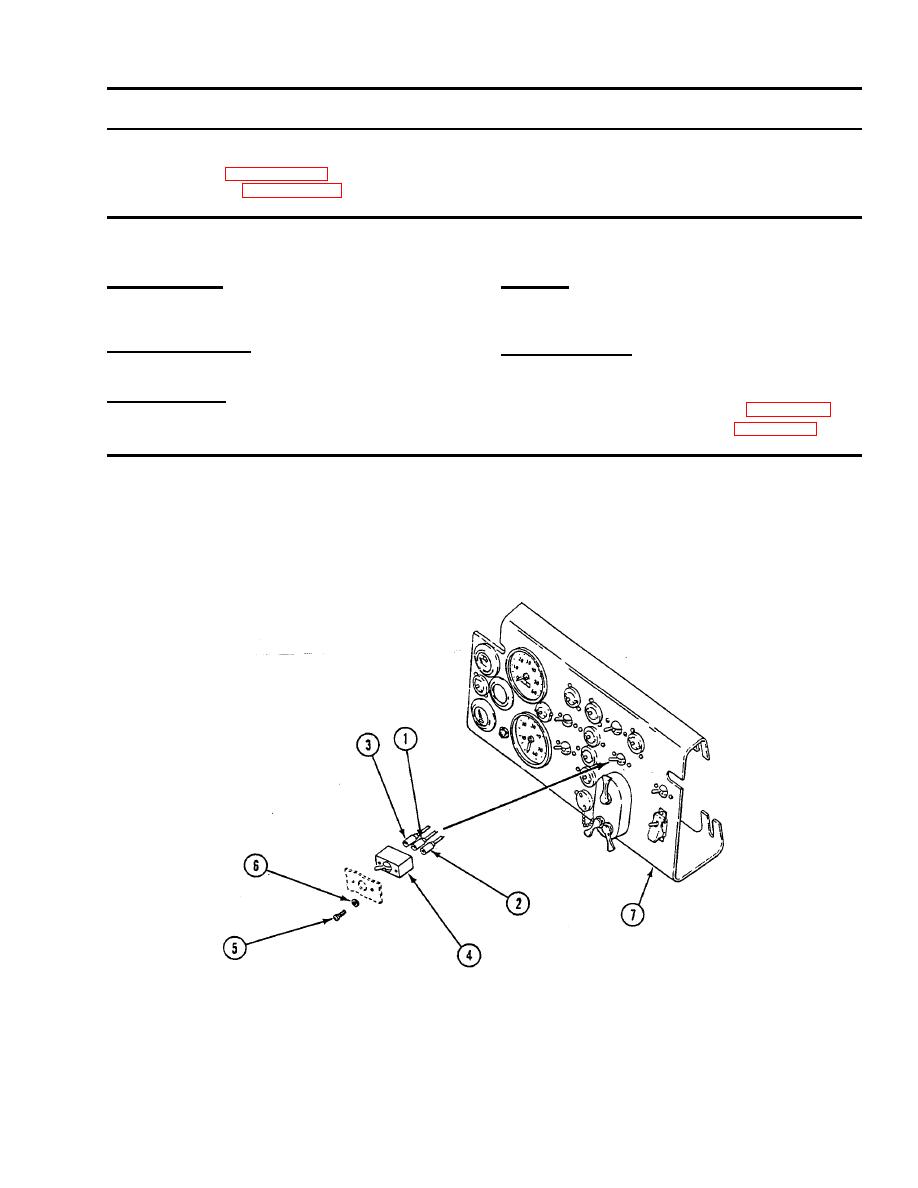

REMOVAL
1.
Disconnect circuit 520 lead (1), circuit 19 lead (2), and circuit 514-515 lead (3) from infrared-blackout select switch (4).
2.
Remove two screws (5) and washers (6) from instrument panel (7) and infrared-blackout select switch (4).
3.
Remove infrared-blackout select switch (4) from instrument panel (7).
INSTALLATION
1.
Install infrared-blackout select switch (4) on instrument panel (7). Secure with two washers (6) and screws (5).
2.
Connect circuit 514-515 lead (3), circuit 19 lead (2), and circuit 520 lead (1) to infrared-blackout select switch (4).
