INSPECT/ADJUST TRACKS

PREVENTIVE MAINTENANCE CHECKS AND SERVICES Continued - TM-9-2350-247-10_463

INSPECT/ADJUST TRACKS Continued - TM-9-2350-247-10_465

TM-9-2350-247-10 Hull and Related Components Recovery Vehicle Full Tracked: Light Armored M578 (2360-00-439-6242) (EIC:3LA) Manual
Page Navigation
390

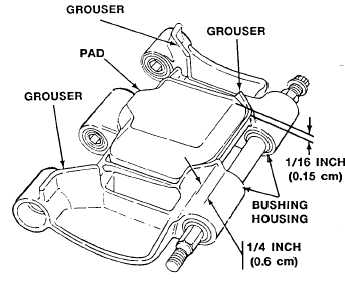

TM 9-2350-247-10 INSPECT/ADJUST TRACKS 0058 00 THIS WORK PACKAGE COVERS: Inspection of Installed Items (page 0058 00-1). Adjustment (page 0058 00-5). INITIAL SETUP: Maintenance Level Operator Tools and Special Tools Profile Gauge (WP 0081 00, Item 21) Grease Gun (WP 0081 00, Item 22) Drive Pin Punch (WP 0081 00, Item 32) Open End Wrench, 5/8 inch (WP 0081 00, Item 41) Materials/Parts Wiping rag (WP 0083 00, Item 16) Personnel Required Driver Soldier Equipment Condition Engine stopped (WP 0023 00), (WP 0024 00) INSPECTION OF INSTALLED ITEMS 1. Measure the height of the top edge of the grouser above the bushing housing. If grouser height left is less than 1/4 inch (0.6 cm), replace shoe (WP 0060 00). NOTE Always keep a set of good track pads on the rear bumper. 2. Measure the height of the top of the track shoe pad above the top of the grouser. If height is less than 1/16 inch (0.15 cm), the pad is too worn for that shoe. If the shoe is otherwise OK, the pad must be replaced because it will damage a paved road (WP 0061 00). 0058 00-1
