4-4. LOWER FUEL TANK REPLACEMENT.
This Task Covers:
a. Removal
b. Installation
lnitial Setup:
Tools/Test Equipment:
Combination wrench, 1 1/4 inch (Item 8,
Appendix D)
General mechanic’s tool kit
(Item 19, Appendix D)
Materials/Parts:
Sealing compound (Item 21, Appendix B)
Personnel Required: Three
Equipment Conditions:
Powerpack removed (refer to
TM 9-2350-287-20-1).
Fuel tanks drained (refer to TM 9-2350-287-10).
Exhaust duct and pipe removed (refer to
TM 9-2350287-20-1).
Air cleaner duct and elbow removed (refer to
TM 9-2350-287-20-1).
Fuel level transmitter removed (refer to
TM 9-2350-287-20-1).
Fuel pumps removed (refer to TM 9-2350-287-20-1).
Hoses, tubes, and fittings disconnected (refer to
TM 9-2350-287-20-1).
a.
REMOVAL
1.

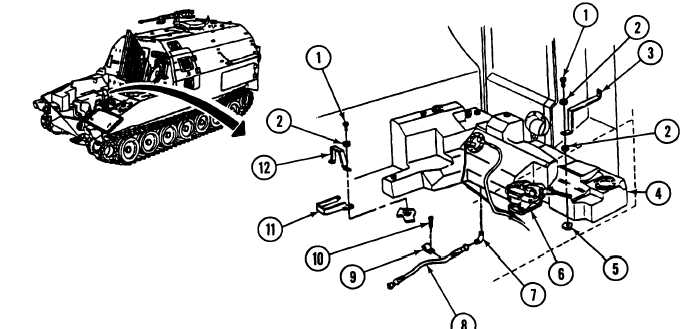

Remove screw (10) and clamp (9) securing hose (8) to hull (5).
For correct installation,
on each strap.
NOTE
record the number of washers and lengths of screws used
2.
Remove four screws (1) and washers (2) and three retaining straps (3, 11, and 12) from lower fuel tank (4).
