TM 9-2350-287-20-2
21-7.
CREW AFES CYLINDER BOTTLE BRACKET STRAPS, BRACKETS, AND MOUNTS
REPLACEMENT (continued).
3.

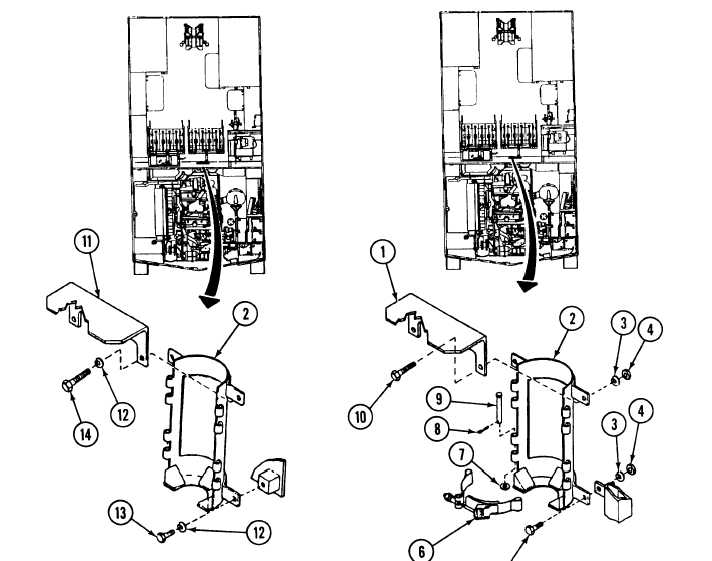

Install two brackets (2 and 11) on bulkhead with two screws (13) and screws (14) and four new Iockwashers
(12).
4.
Install two brackets (1 and 2) on canister compartment with four nuts (4) and new lockwashers (3) and two
screws (5) and screws (10).
NOTE
All crew AFES cylinder bottle bracket straps are installed the same way.
5.
Install 12 bracket straps (6) on six brackets (2) with 24 pins (9), washers (7), and new cotter pins (8).
FOLLOW-ON MAINTENANCE:
Install crew AFES cylinder bottles (para 21-5).
Reactivate crew AFES (para 21-3).
21-24
|
