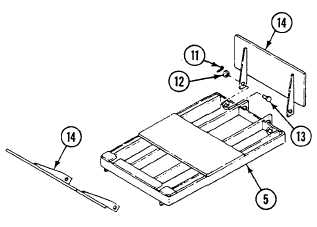

TM 9-2350-277-20-4 REPLACE/REPAIR COMMANDER’S PLATFORM (M113A3, M1059A3, M1064A3, AND M58 ONLY) — Continued 0559 00 NOTE Do Step 8 for M1064A3 only. 8. Remove four cotter pins (11), washers (12), pins (13), and two plates (14) from platform (5). Discard cotter pins. ASSEMBLY NOTE Do Step 1 for M1064A3 only. 1. Align two plates (14) with platform (5). Secure with four pins (13), washers (12), and new cotter pins (11). 2. Install post (6) on two supports (10). Secure with two screws (9) and new locknuts (8). Install two posts (6) and (7) on platform (5). 0559 00-4
