LOCATION OF VEHICLE COMPONENTS (VEHICLES 345 AND ABOVE)

LOCATION OF VEHICLE COMPONENTS (VEHICLES 1 THRU 344) - EXTERIOR (cont)

LOCATION OF VEHICLE COMPONENTS (VEHICLES 345 AND ABOVE) - EXTERIOR (CONTINUED)

TM-9-2350-267-20 Carrier Ammunition Tracked M992 (2350-01-110-4660) Manual
Page Navigation
5

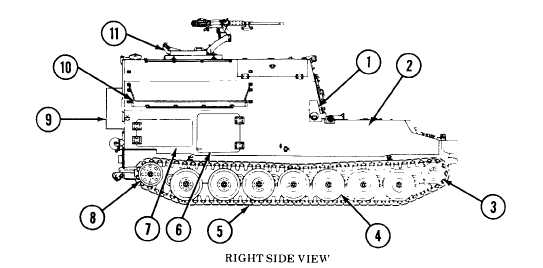

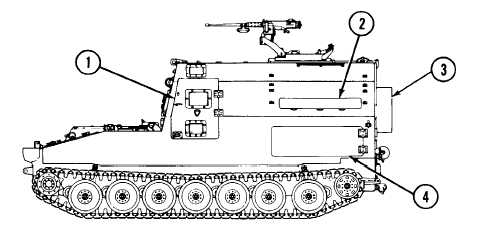

1-4.2 Change 3 TM 9-2350-267-20 LOCATION OF VEHICLE COMPONENTS (VEHICLES 345 AND ABOVE) - EXTERIOR LEGEND 1 2 3 4 5 6 7 8 9 10 11 Fuel fill access door Hull Drive sprocket Roadwheel Track Personnel side door Canister side door Idler wheel Crew AFES extinguisher box assembly Duflle bag stowage rack Commander’s cupola LEGEND 1 APU door 2 Duffle bag stowage rack 3 Crew AFES extinguisher box assembly 4 Canister door/copperhead projectiles LEFT SIDE VIEW
