316

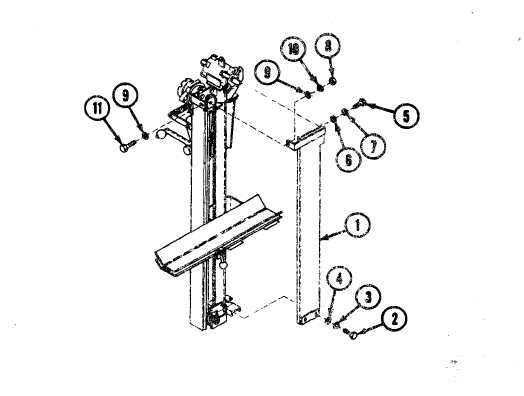

TM 9-2350-267-10 STACKER CHAIN MAINTENANCE - Continued 5. 4. Install inner chain guard (1) as follows: a. b. c. d. e. Position chain guard (1) against stacker assembly. Aline top horizontal holes and install screw (1), Iockwasher (10), two flat washers (9) and nut (8). Do not tighten screw at this time. Aline top forward horizontal holes and install screw (5), lockwasher (7) and flat washer (6). Do not tighten screw at this time. Raise stacker tray from floor to provide access to bottom holes. Aline bottom holes and install two screws (2), two Iockwashers (3) and two flat washers (4). Tighten screws (2). Tighten all screws at top of chain guard. Activate hydraulic system and operate stacker through full travel several times to check for proper operation 3-46
