TM 9-2350-261-10

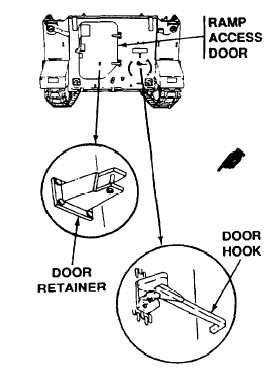

Position of door hook and door
retainer varies with model.
M981 and M1064 are opposite as
shown.
2. Swing ramp access door outward
until ramp access door hook
engages in door retainer.
CLOSE RAMP ACCESS
DOOR FROM INSIDE
CARRIER
WARNING
Ramp access door
is heavy. It can
swing and injure
personnel. Stand
clear when you
release
ramp
access door hook.
1.
2.
Pull ramp access door hook to
release ramp access door.
Swing ramp access door closed.
Lower inside door handle until it
bits stop on combat lock. Set
combat lock.
NOTE
Position of door hook and door
retainer varies with model.
M981 and M1064 are opposite as
shown.
OPEN RAMP ACCESS DOOR
FROM OUTSIDE CARRIER
WARNING
Ramp access door
is heavy. It can
swing and injure
personnel. Do not
stand
behind
ramp access door.
Keep hands out from between
handle and ramp access door.
NOTE
Combat lock must be released to
open ramp access door from
outside carrier.
2-142
Change 5
